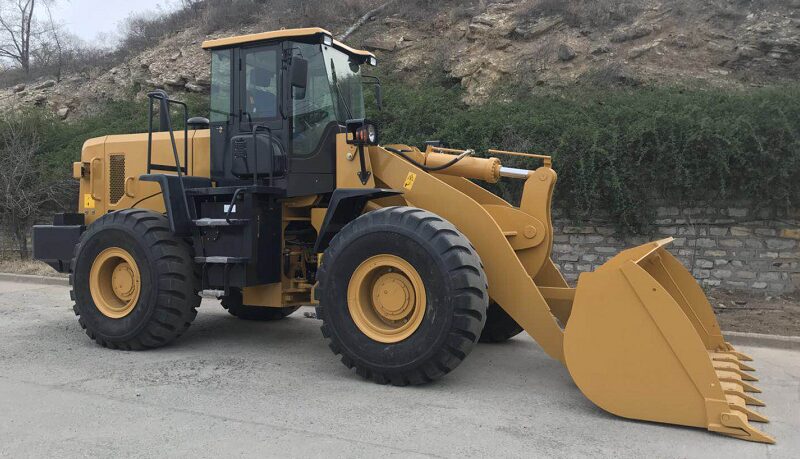

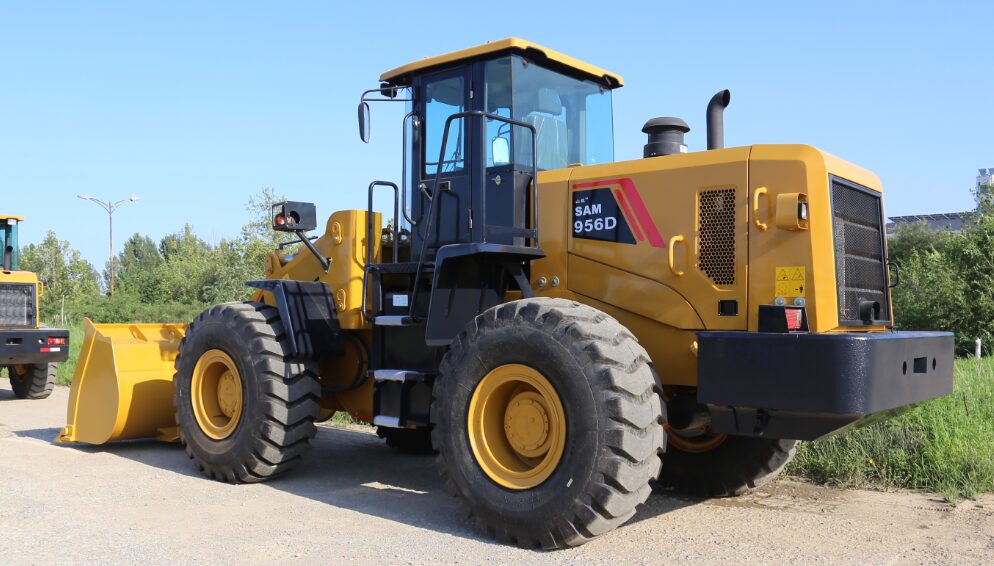

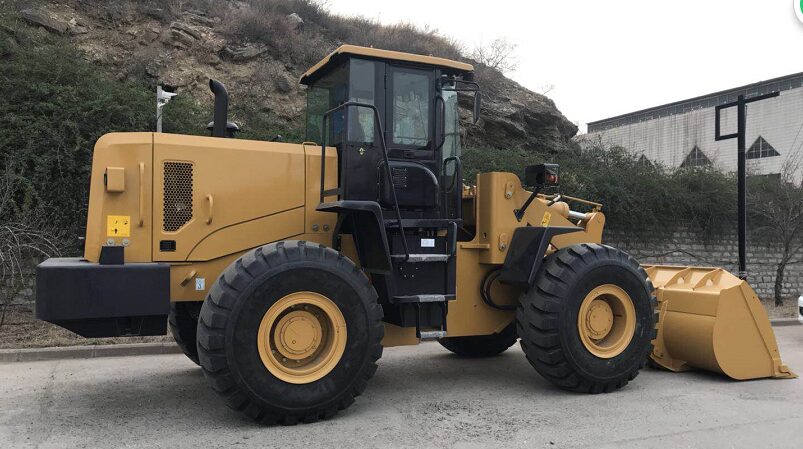

main performance parameters of Wheel Loader SAM956D
| Performance | 1 | rated load | 5000kg |
| 2 | overall weight | 16500-175000kg | |
| 3 | rated bucket capacity | 3m3 | |
| 4 | maximum tractive force | 152KN | |
| 5 | maximum breakout force | ≥170KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 3150mm | |
| 8 | maximum dump reach | 1250mm | |
| 9 | overall dimension (L×W×H) | 8085×2950×3450mm | |
| 10 | minimum turning radius | 6150mm | |
| Engine | 11 | model | Weichai SteyrWD10G220E23 |
| 12 | type | lnline water cooling dry cylinder injection | |
| 13 | No. of cylinder-bore/stroke | 6－126×130mm | |
| 14 | rated power | 162kw | |
| 15 | maximum torque | 980N.m | |
| 16 | min fuel-consume ratio | ≤215g/kw.h | |
|
Transmission system |
17 | torque converter | ZL50 |
| 18 | gearbox mode | planetary | |
| 19 | gear shift | 2forward shift 1reverse shift | |
| 20 | maximum speed | 38km/h | |
| Drive axles | 21 | ：main reducing spiral
|
bevel gear grade 1reduction |
| 22 | decelerating mode | planetary reduction,grade 1 | |
| 23 | wheel base (mm) | 3250mm | |
| 24 | wheel tread | 2250mm | |
| 25 | minimum ground clearance | 460mm | |
|
Hydraulic system |
26 | system working pressure | 18Mpa |
| 27 | boom lifting time | 5.95±0.2s | |
| 28 | total time | 10.95±0.5s | |
| 29 | fuel tank capacity | 290L | |
| Hydraulic oil tank capacity | 250L | ||
| 30 | function of leveling automatically | yes | |
|
Brake system |
31 | service brake | air over hydraulic disc brake on 4 wheels |
| 32 | parking brake | manual parking brake | |
|
Tyre |
33 | type specification | 23.5-25 |
| 34 | front tyre pressure | 0.4Mpa | |
| 35 | rear tyre pressure | 0.35Mpa |
