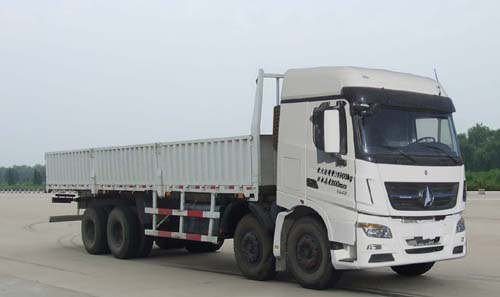

| Beiben 8×4 V3 Cargo Truck 3134P | |
| Model | 3134P |
| Engine | WEICHAI WP10.340E32, 340HP |
| Displacement | 9.726L |
| Transmission | 12JS160T gearbox, 12 forward, 2 reverse |
| Steering | ZF8098 Hydraulic Steering With Power Assistance |
| Clutch | GFX430, Single dry frictional disc, Hydraulic boosting |
| Front axle ( Benz Technology) | 7Ton Double-shoe pneumatic brake, non-driving steering axle |
| Rear axle ( Benz Technology) | 18Ton, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Cab | V3 Cab, inner A/C, no bed |
| Rim/Tires | 12.00R20 bias tire(one spare tire) |
| Cargobox Dimensions | 9500×2300×800mm |
| Thickness of Cargobox | 4mmx3mm |
| Overall Dimensions | 11600×2500×3180mm |
| Curb Weight | 14310kg |
| Wheel base | 1500+5050+1450 mm |
| Color | white, yellow |
| Max. Speed | 100km/h |
| Fuel Tank | 400L |
