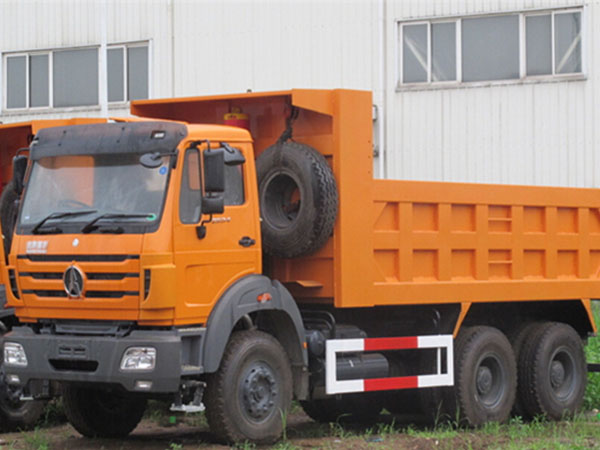

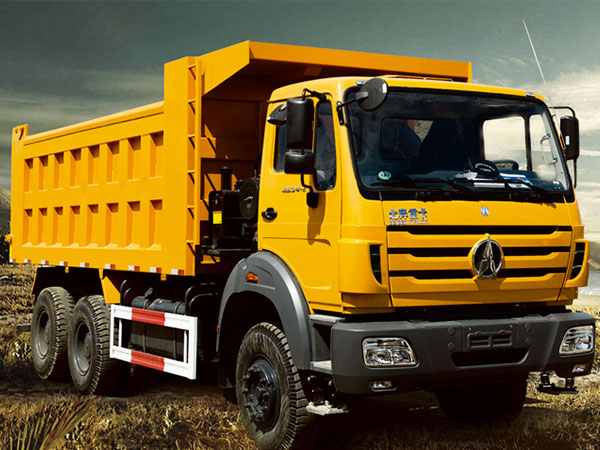

| Beiben NG80 Tipper Truck Dump Truck 8×4 3138K | |
| Model | 3138K |
| Engine | Weichai WP10.380E32, 380HP |
| Displacement | 9.726L |
| Transmission | 12JS200T gearbox, 12 forward, 2reverse |
| Steering | ZF8098 hydraulic steering with power assistance |
| Clutch | GFX430, Single dry frictional disc, Hydraulic boosting |
| Front axle (Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle |
| Middle Rear axle (Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Cab | NG80B short cab, inner A/C, no bed |
| Rim/Tires | 12.00R20radial tire (one spare tire) |
| Cargobox Dimensions | 7500x2300x1400mm |
| Thickness of Cargobox | 8mmx6mm |
| Overall Dimensions | 10500×2500×3430mm |
| Wheel base(mm) | 1500+3550+1450mm |
| Color | white, yellow |
| Fuel Tank | 400L |
