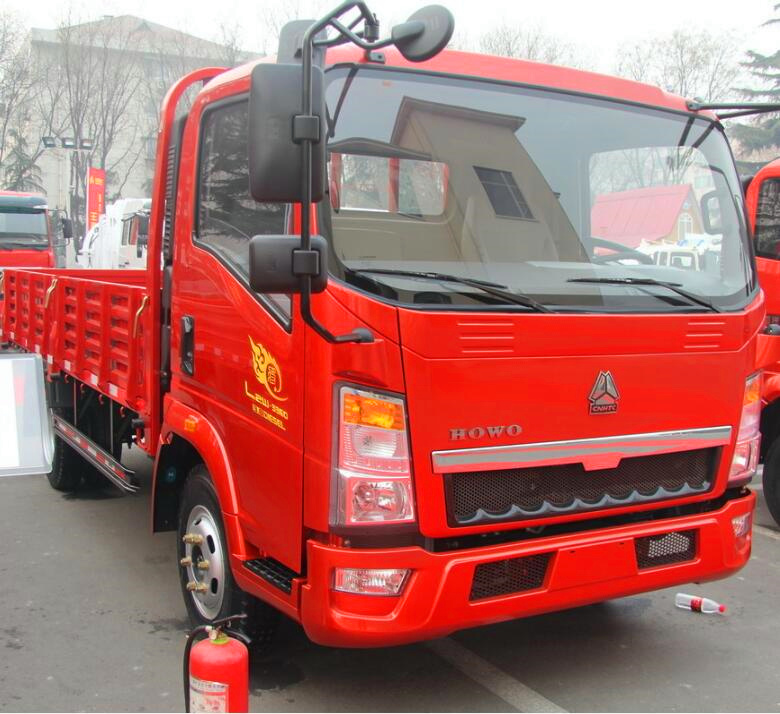

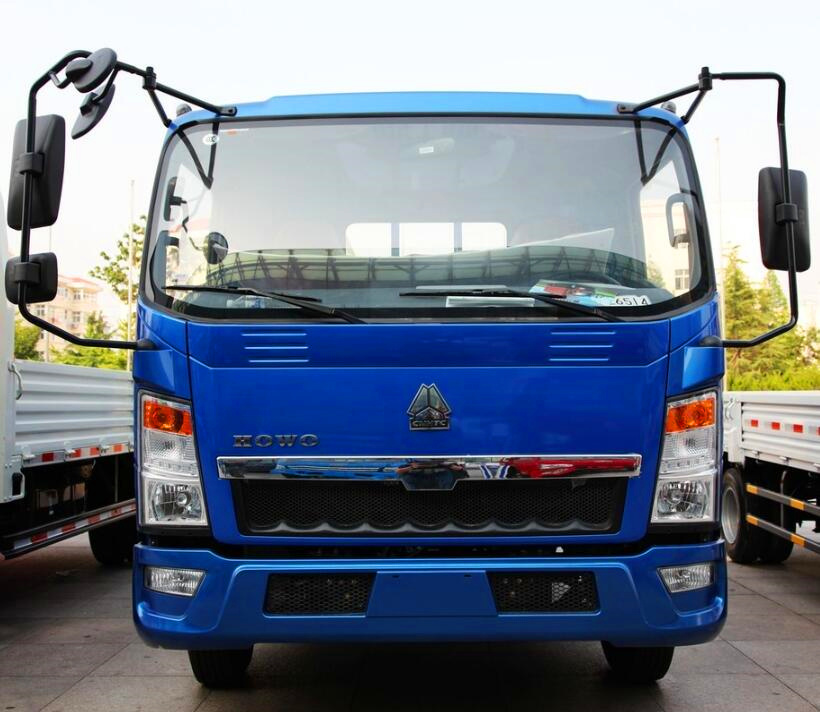

Basic Information
| Model | ZZ1047D3415D145 | Drive form: | 4X2 |
| Wheelbase: | 3360mm | Body length: | 5.995 meters |
| Body width: | 2.18 meters | Body height: | 2.45 meters |
| Wheelbase: | 1825,1540mm | Vehicle weight: | 2.305 tons |
| Rated load: | 1.995 tons | Total mass: | 4.495 tons |
| Maxi.speed: | 90.0km/h | Origin: | Jinan China |
Engine
| engine: | Yunnei Power YN38CRD2 | Number of cylinders: | 4 |
| Fuel type: | diesel fuel | Displacement: | 3.8L |
| Emission Standards: | National IV/Euro IV | Maximum output power: | 85.0kW |
| Maximum horsepower: | 117 hp | Torque: | 325N·m |
| Maximum torque speed: | 1600-2400rpm | Rated speed: | 3000rpm |

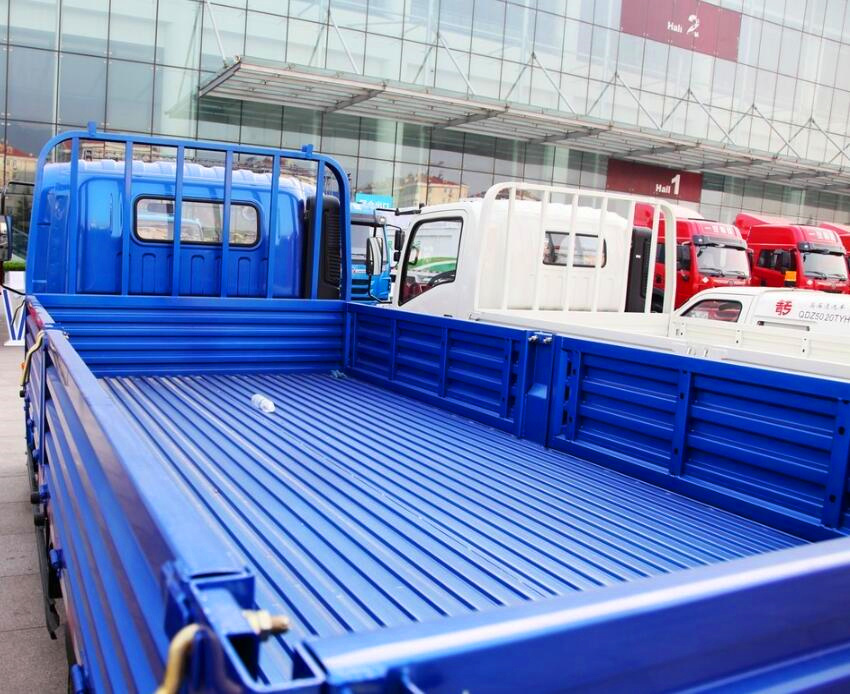

Cargo box parameters
| Cargo Length: | 4.2 meters | Cargo width: | 1.95 meters |
| Cargo height: | 0.45meters | Cargo box form： | fence |
Cab parameters
| passengers | 3 | Seat Type: | Single Row |
Gearbox
| Model： | WLY6T46 | No.of forward： | 6 |
| No.of reverse： | 1 |
Tire
| No.of tires： | 6 | Tire specification | 7.50-16 |
Fuel Tank
| Tank capacity | 120.0L |
Chassis
| Rear axle | 2705 | Ratio | 5.375 |
| Number of springs | 11/9+7 |
